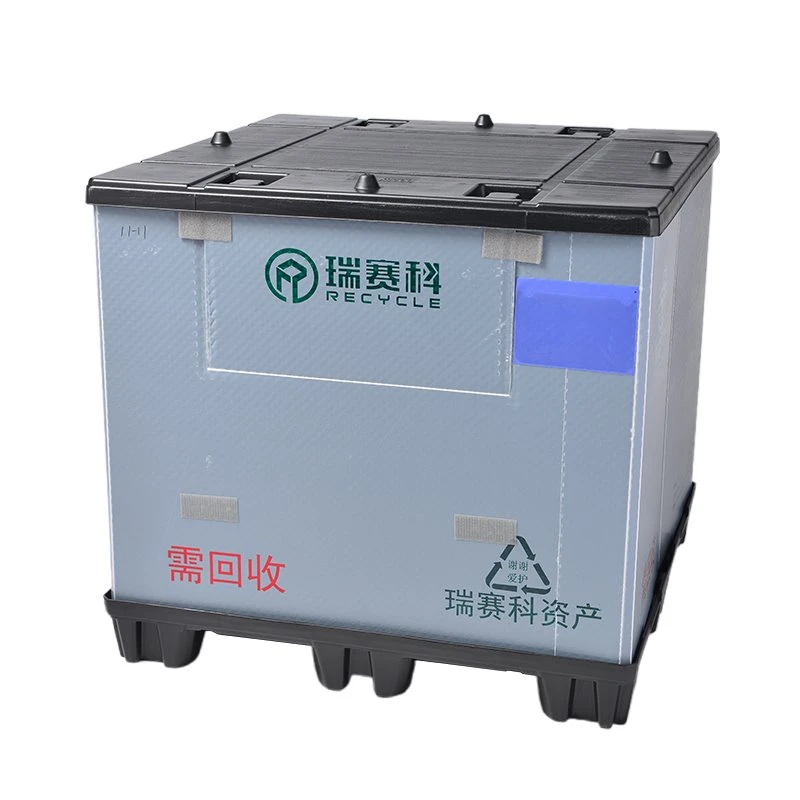

1100×1100 mm Pallet Sleeve Box

1100×1100 mm Pallet Sleeve Box
Product Introduction:
Product Name: Collapsible Sleeve Container, Plastic Sleeve Box, Honeycomb Panel Box
Packaging Type: Reusable Transport Packaging
Production Technology: Thermoforming and Blow Molding Technology
Interior Panel Material: Corrugated Plastic Board / Honeycomb Panel
Color Customization: Available with customized color options
Send Inquiry
Description
Technical Parameters

Jiangsu Recycle Logistics Technology Co., Ltd. is one of the leading manufacturers and suppliers of 1100×1100 mm pallet sleeve box in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk custom made 1100×1100 mm pallet sleeve box from our factory.



Jiangsu Recycle Logistics Technology Co., Ltd. provides the well-received 1100×1100 mm Standard Collapsible Pallet Box, a modular reusable packaging solution built for closed-loop industrial storage and overseas export.



Built with mature modular structure, this 1100×1100 mm Pallet Sleeve Box supports both stringer-base and nine-foot base pallet choices. For stringer-base type, you may pick steel-reinforced stringers to work with automated lines, AGVs and high-bay racking. The nine-foot base allows four-way forklift access, convenient for floor stacking and multi-directional loading and unloading.



Item

Specification

Product Name

Collapsible Sleeve Container, Plastic Sleeve Box, Honeycomb Panel Box

Packaging Type

Reusable Transport Packaging

Production Technology

Thermoforming and Blow Molding Technology

Interior Panel Material

Corrugated Plastic Board / Honeycomb Panel

Color Customization

Available with customized color options

Sleeve Panel Thickness

10 mm or customized according to requirements

Material of Box Body

PP Honeycomb Sheet

Product Dimensions

Made-to-order sizes available

Load Capacity

Customized according to specific application needs

Application Fields

Automotive parts, logistics transportation, food, pharmaceutical and other sectors



Built from high-strength PP honeycomb panels, the 1100×1100 mm Pallet Sleeve Box features 500 kg dynamic load and 1000 kg static load, outperforming conventional wooden and cardboard boxes in service life and load distribution. Site operators really like its snap-fit quick-disassembly structure since no tools are needed at all. Just one member of your staff can wrap up unfolding and folding work within 10 seconds. Once collapsed, empty-box volume is reduced by 80 %. This brings tangible improvement to warehouse space utilisation and helps you cut down reverse-logistics freight expenditure for empty container returns.

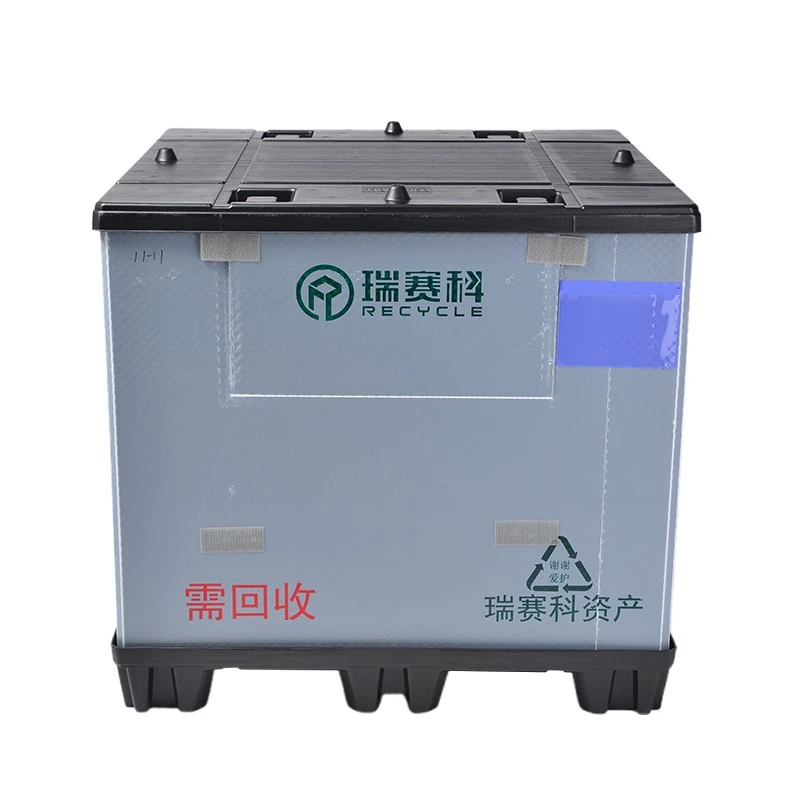

DSC3176

On your production floor, the 1100×1100 mm Pallet Sleeve Box helps you consolidate scattered goods into standard unit loads. It noticeably boosts efficiency across warehousing, production-line circulation and end-to-end logistics workflows. Another cost-saving merit comes from its repairable construction: you only swap out damaged lids or honeycomb side panels instead of throwing away the whole unit. It passes factory-level drop, stacking-load and high-low-temperature tests, supporting up to 50 000 folding cycles without cracking. We also supply multiple customisable options: access windows, anti-static modification, -30 °C low-temperature resistance, LOGO printing and RFID chip slots. Fumigation-free and compliant with EU PPWR regulations, this standard-size pallet box comes with a 3-year warranty for factory-direct worldwide export.

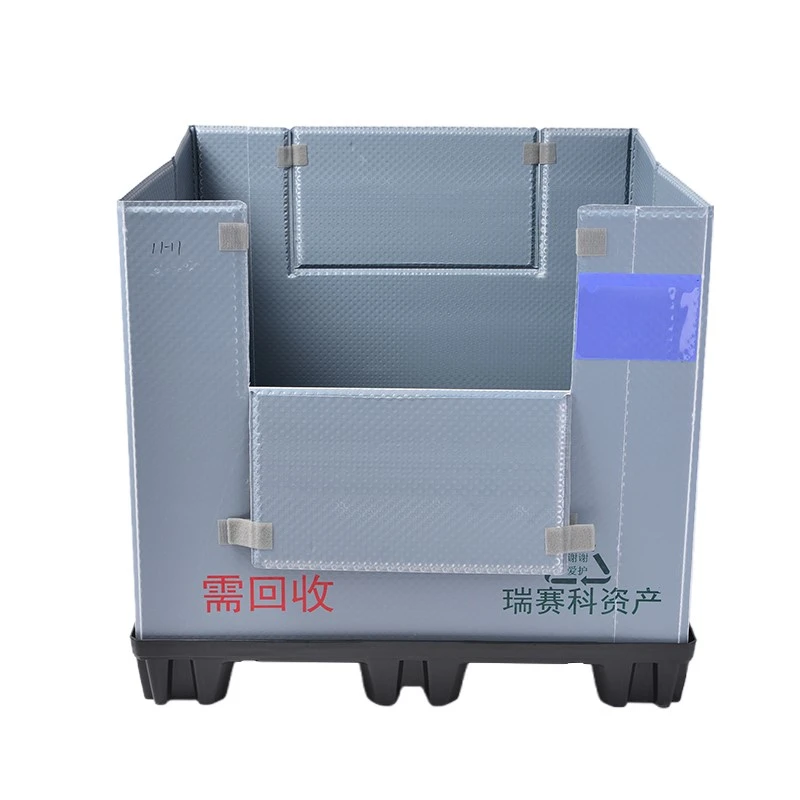

DSC3175



Practical dimension-related questions often raised by buyers



1. Q: Are you capable of producing foldable pallet boxes for virtually any dimension?

A: We cover nearly all dimension specifications widely adopted across the industry. Could you pass along the exact measurements you are after?

2. Q: What is the upper limit for the overall box size you can deliver?

A: Our largest producible specification hits 2675×1575 mm. It would help if you could tell us about your loaded goods and target dimensions. Our team is ready to suggest well-matched packaging options for your items.

3. Q: What exactly does the height value-190 refer to?

A: This 190-mm value represents the gap between the box's outer overall height and its usable inner clearance. We can adjust box height parameters to match your actual merchandise.

4. Q: What height selections are there for the 800×600 foldable pallet box model?

A: For this particular specification, the side wall height can be adjusted freely to fit your real-life product conditions.
